FEELER’s vertical machining centers(Linear) insists on stable quality and customer satisfaction first. FEELER keeps material inspection and check at each manufacturing stage to produce the most reliable vertical machining centers(Linear) in the market.
VMP Series

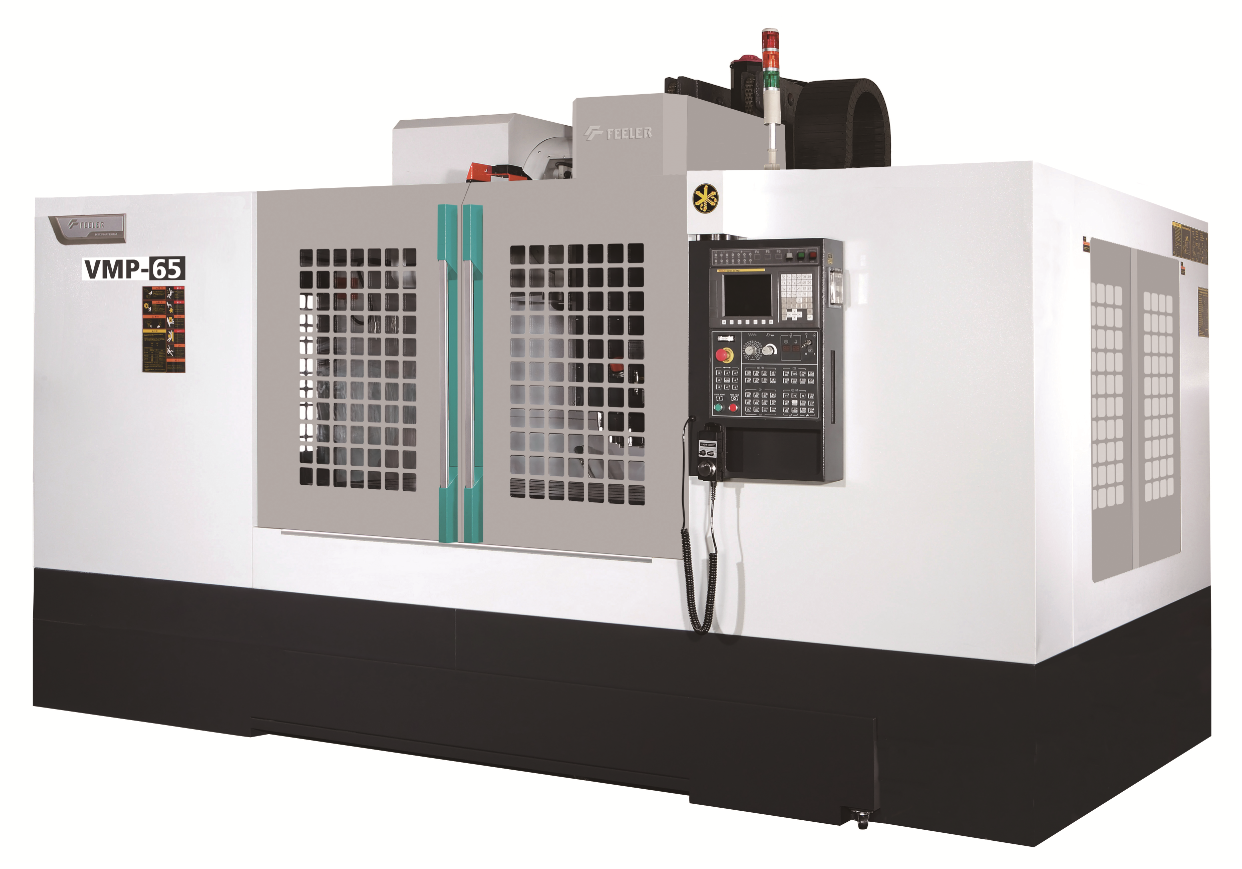

VMP-65(A)



1.The machine structure and major parts are manufactured from Meehanite iron for outstanding material stability and guaranteed long-term deformation-free performance.

2.Servomotor directly drives ballscrew. Ballscrews are pretensioned, enduring rigidity and accuracy required for the feed transmission system.

3.The column bottom is specially deigned with A-shaped structure.

4.Boxways for Z axis are coated with low friction Turcite B, providing increased cutting rigidity.



TRAVEL

X-axis travel 1,650mm
Y-axis travel 800mm
Z-axis travel 800mm
Spindle nose to table surface 70mm-870mm
Spindle center to column surface 850mm
Table surface to floor 1080mm
Table center to column surface 450mm-1250mm

SPINDLE

Spindle speed 10,000rpm
Spindle taper 7/24 Taper No.40
Spindle power 15/18.5 Kw

FEEDRATE

X-axis rapid traverse 36m/min
Y-axis rapid traverse 36m/min
Z-axis rapid traverse 24m/min
