FEELER’s vertical machining centers(Linear) insists on stable quality and customer satisfaction first. FEELER keeps material inspection and check at each manufacturing stage to produce the most reliable vertical machining centers(Linear) in the market.
HV Series

HV-40A



HV-40A has higher saddle than that of conventional models. This special design significantly upgrades bending resistant capability, movement straightness and structural rigidity. In additional, it also facilitates workpiece loading and unloading on meets human-engineering theorem.

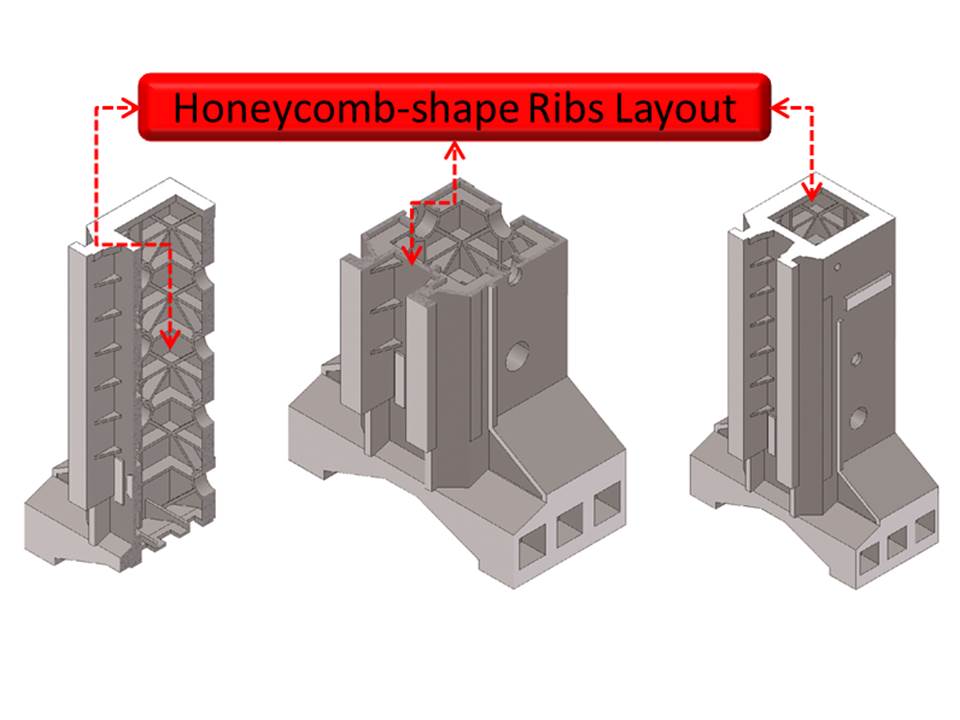

The iron casting of the column is reinforced by cross ribs. This special design not only upgrades structural torsional torque resistant capability, but also effectively upgrades resonance frequency of low frequency structure.




TRAVEL

X-Axis Travel 1,000mm
Y-Axis Travel 520mm
Z-Axis Travel 505mm
Spindle Nose to Table Surface 100mm-605mm
Spindle Center to Column Surface 560mm
Table Surface to Floor 970mm
Table Center to Column Surface 300mm-820mm

SPINDLE

Spindle Speed 10,000rpm
Spindle Taper 7/24 Taper No.40
Spindle Power 15/18.5 Kw

FEEDRATE

Rapid traverse X-axis 60m/min
Rapid traverse Y-axis 60m/min
Rapid traverse Z-axis 30m/min
