VORTEX Series

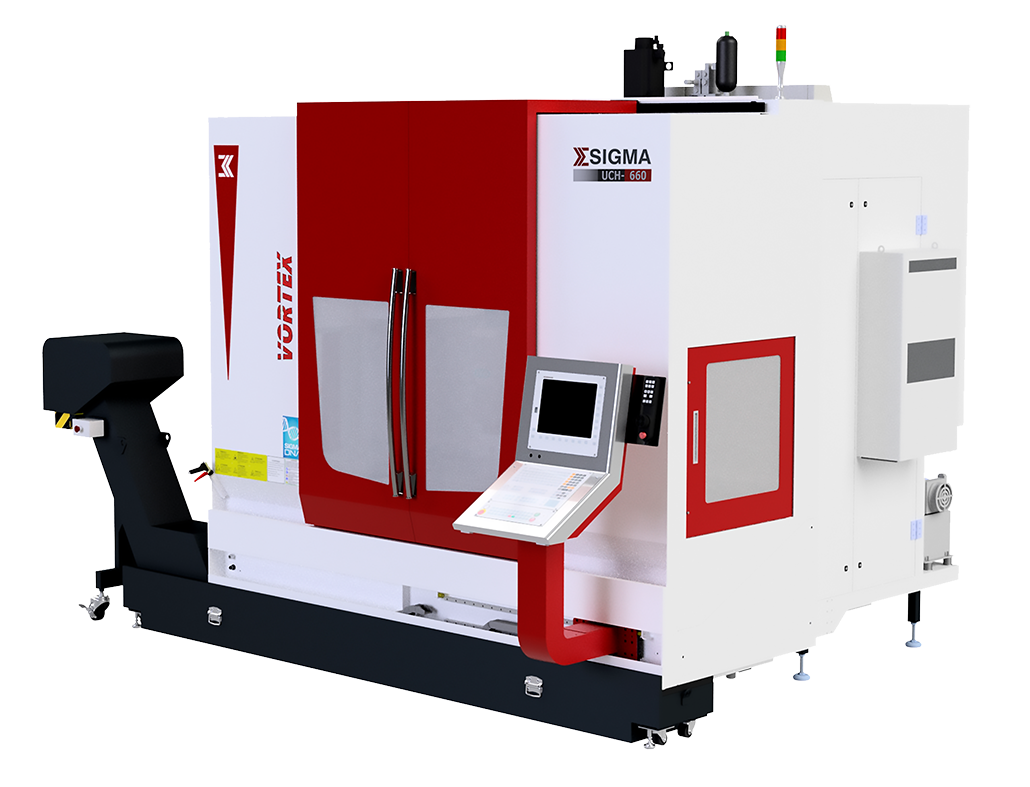

UCH-660



(1)Moving column structure：The M-shaped structure increases anti bend and anti-torsion of the column The counter-weight is supported by the pneumatic cylinder. The shape of the column is similar to the pyramid to increase the stability for moving.

(2)One piece base structure ：The rigidity of structure is good. The outer shape is not complicated, it is easy for machining. The internal structure adopts the box type design to increase the bearing capacity.The round shape hole is easy to clear sand and increase force flow. The work tableadopts the high and low rail design to increase the rigidity.

(3)Rotary spindle head structure：Reduce the interference machining area.

(4)Modular design ：By changing the column head of the column, etc., the customer can have a variety of opportunities to choose from.

(5) Turning and milling function(OPT)：​Shorten the product manufacturing process. To improve the production efficiency, accuracy and reduce the clamping times and floor space. It can be used in aerospace parts and medical equipment precision molds.

TRAVEL
X-axis travel 1,250mm
Y-axis travel 750mm
Z-axis travel 820(V) / 950(H) mm
B-axis rotation angle +110°~-110  °
C-axis rotation angle 360°
Spindle nose to table surface 90-910(V) / 280-1230(H)mm
Table dimension 660 mm (1450*700)

SPINDLE
Spindle speed Built-in type 12,000
Spindle taper 7/24 Taper No. 40
Spindle power 29.5/37 Kw

FEEDRATE
X-axis rapid traverse 50m/min
Y-axis rapid traverse 50m/min
Z-axis rapid traverse 50m/min
