Vertical Machining Center

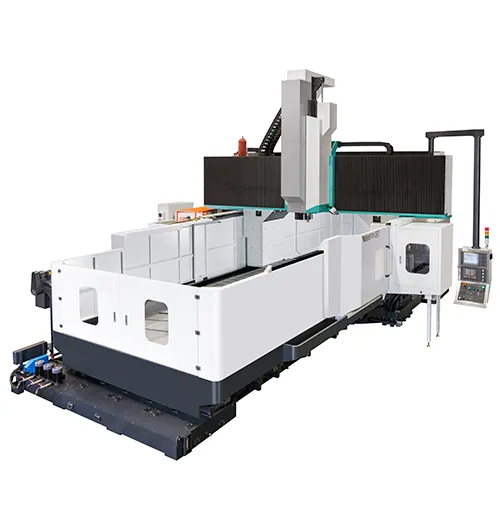

The FDM Series is designed for precision mold makers, ideal for large molds and mold bases. The machine features a cast iron structure with a box-type base and reinforced rib design, while the table guideways use an optimized four-rail symmetrical layout for wide load-bearing surfaces. This combination delivers exceptional rigidity and vibration resistance for long-term high-precision machining.
For X-axis travel over 7200 mm, a rack and pinion drive with reduction gearbox ensures minimal backlash and maintains precise positioning. The spindle head and slide contact surfaces are enlarged to increase rigidity and dampen vibration. This allows the use of larger diameter tools, improving material removal rates, reducing cycle time, and lowering overall production costs.
The FDM Series supports automatic head and tool changing, enabling true production automation. Full-travel supported axes enhance structural stability and vibration resistance, ensuring high precision and efficiency for large mold machining.
| Item | Unit | FDM-3228 | FDM-4228 | FDM-5228 | FDM-6228 | FDM-7228 | FDM-8228 | FDM-4232 | FDM-5232 | FDM-6232 | FDM-7232 | FDM-8232 | FDM-4235 | FDM-5235 | FDM-6235 | FDM-7235 | FDM-8235 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X Axis Travel | mm | 3200 | 4200 | 5200 | 6200 | 7200 | 8200 | 4200 | 5200 | 6200 | 7200 | 8200 | 4200 | 5200 | 6200 | 7200 | 8200 | |
| Y Axis Travel | mm | 2700(3300) | 3100(3700) | 3400(4000) | ||||||||||||||
| Z Axis Travel | mm | 800(1000-1400) | ||||||||||||||||
| Table Dimensions | Length | mm | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 4000 | 5000 | 6000 | 7000 | 8000 | 4000 | 5000 | 6000 | 7000 | 8000 |
| Width | mm | 2600 | 3000 | |||||||||||||||
| Max. Loading Weight | ton | 12(16) | 15(21) | 18(23) | 21(24) | 24(27) | 27(30) | 21(24) | 23(26) | 24(27) | 27(30) | 30 | 24(27) | 26(29) | 27(30) | 27(30) | 30 | |
| Spindle Speed | rpm | 6000(4000-8000) | ||||||||||||||||
| Spindle Taper | - | BT/DIN/CAT 50(#40) | ||||||||||||||||
| X Axis Rapid Traverse | m/min | 15 | 12 | 15 | 12 | 15 | 12 | |||||||||||
| Y Axis Rapid Traverse | m/min | 15 | 15 | 15 | 15 | 15 | 15 | |||||||||||
| Z Axis Rapid Traverse | m/min | 12 | 12 | 12 | 12 | 12 | 12 | |||||||||||
| No. of Tools | T | 24(32-90) | ||||||||||||||||
