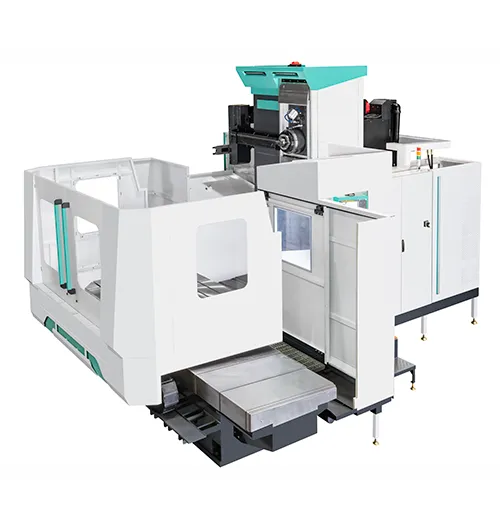

Horizontal Machining Center
The SHB Series is built with a modular structural design that allows flexible configurations to meet diverse production requirements. It provides an ideal solution for multi-surface and multi-process machining of medium and large parts, supporting milling, drilling, boring, threading, and contour machining. With its high rigidity, precision, and reliability, the SHB Series delivers stable performance and user-friendly operation for a wide range of industrial applications.
The rotary table features a dual-lead worm and gear drive that effectively eliminates backlash, ensuring exceptional positioning accuracy and angular precision under heavy load conditions. Each joint surface of the table is hand-scraped to ensure optimal contact and lubrication, enhancing overall precision and extending service life.
All three axes and the rotary table are equipped with optical scale feedback systems, ensuring reliable axial accuracy and long-term machining stability. Combining rigidity, precision, and a clean, functional design, the SHB Series stands out as a dependable choice for complex, heavy-duty production environments.
| Item | Unit | SHM-11020RF | SHB-110XXRS | SHB-110XXRM | SHB-130XXRS | SHB-130XXRM | SHB-130XXRL |
|---|---|---|---|---|---|---|---|
| Table Dimensions | mm | 1000x1200 | 1400x1600 | 1800x2000 | 1400x1600 | 1800x2000 | 3200x1800 |
| Max. Loading Weight | ton | 5 | 10 | 15 | 10 | 15 | 20 |
| X Axis Travel | mm | 2000 | 2500-4000 | 3000-4000 | 2500-4000 | 3000-4000 | 3000-4000 |
| Y Axis Travel | mm | 1600 | 1800 (2000/2300/2500) | ||||
| Z Axis Travel | mm | 1200(1400) | 1500 (1700) | ||||
| W Axis Travel | mm | 400 | 500(700) | 700(900) | 500(700) | 700(900) | |
| W-Axis Spindle Diameter | mm | 110 | 130 | ||||
| Spindle Speed (Optional) | rpm | 2500 | 2500(3200) | 2500(3200) | 2000(2700) | 2000(2700) | 2000(2700) |
| X/Y/Z/W Axis Rapid Traverse | m/min | 10/10/10/5 | 10/12/12/5 | ||||
| No. of Tools | T | 40(60) | |||||
