5 Axis Machining Center
The VUX Series is designed around single setup, multi-face machining, featuring a 4/5-axis structure that combines efficiency and precision in a versatile machining solution. It offers a cost-effective entry into 5-axis machining while maintaining high performance, making it suitable for the aerospace, automotive, and precision mold industries.

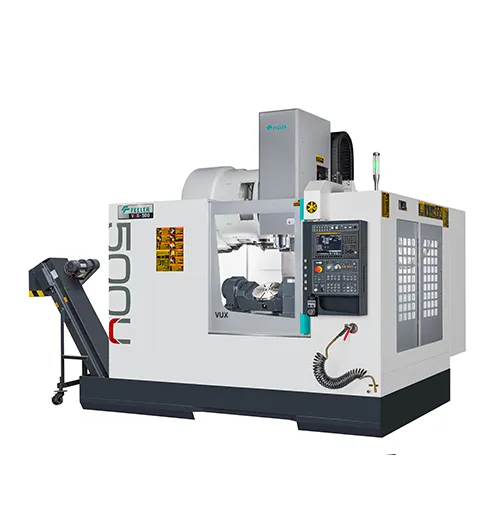

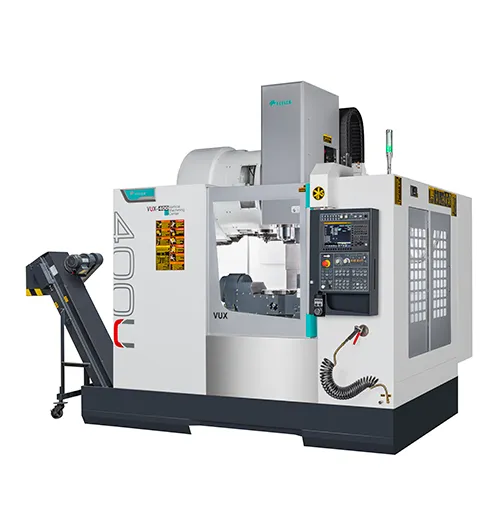

The VUX-300, 400, and 500 are known for high efficiency and cost performance, completing multi-step milling operations on a single machine. They are equipped with 12,000 rpm (optional 15,000 rpm) direct-drive spindles with oil cooling for stable long-duration cutting. High-rigidity roller linear guides provide enhanced cutting stiffness and durability. With rapid traverse rates of 36/36/30 m/min and a tool magazine capacity of up to 60 tools, overall productivity is significantly increased.

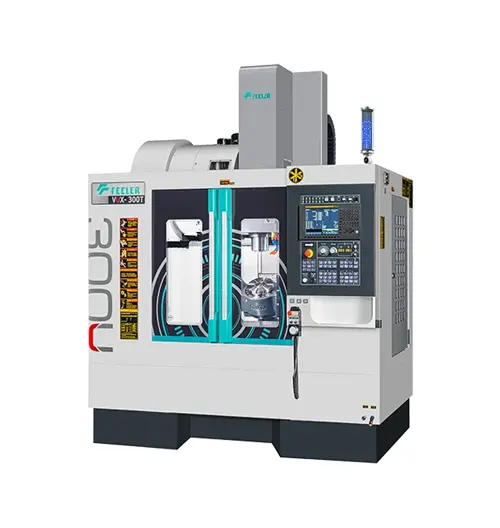

The VUX-300T emphasizes flexible milling and turning integration. Its A-axis tilts from -30° to +120° and C-axis rotates 360°, paired with a Ø200 mm table, enabling complex angles and multi-face machining in a single setup. It features a 12,000 rpm high-speed spindle, rapid traverse of 36/36/32 m/min, and a triple-tank coolant filtration system to maintain clean cutting fluid and extend its life. The AICC II high-speed precision control and Manual Guide i simulation enhance both efficiency and machining accuracy.
| Item | Unit | VUX-300 | VUX-300T | VUX-400 | VUX-500 |
|---|---|---|---|---|---|
| Table Dimensions | mm | φ210 | φ200 | φ350 | φ410 |
| Max. Loading Weight | kg | 100/70 (H/V) | 75/75 (H/V) | 200/100 (H/V) | 200/150 (H/V) |
| X Axis Travel | mm | 510 | 510 | 650 | 750 |
| Y Axis Travel | mm | 420 | 420 | 520 | 650 |
| Z Axis Travel | mm | 395 | 345 | 480 | 600 |
| A Axis Rotation Angle | degree | +30~120° | -30~+120° | +30~120° | +30~120° |
| C Axis Rotation Angle | degree | 0~360° | |||
| Spindle Speed | rpm | 12000 | |||
| Spindle Taper | - | 7/24 Taper No.40 | HSK-A63 | 7/24 Taper No.40 | 7/24 Taper No.40 |
| X Axis Rapid Traverse | m/min | 36 | |||
| Y Axis Rapid Traverse | m/min | 36 | |||
| Z Axis Rapid Traverse | m/min | 32 | 32 | 30 | 24 |
| No. of Tools | T | 20 | 20 | 24 | 24 |
